🔴 Expert Solution Walkthrough: Hyperspace Operations & Transport#

In this walkthrough, we'll approach the challenge exactly as you would: start with the objectives, break them down one by one, and systematically fix what's broken. 🚀

⚠️ Spoiler Alert: This walkthrough contains the full solution to the challenge. We encourage you to try solving it on your own first. Consider coming back here only if you get stuck or want to check your approach.

📋 Step 1: Review the Challenge Objectives#

Let's start by reading what we need to achieve. The challenge states:

By the end of this level, you should have:

  • Automated rollout progression to HotROD version 1.76.0 driven by observability signals
  • OpenTelemetry Collector configured with:
    • OTLP receiver for traces from HotROD
    • Spanmetrics connector converting traces as metrics
    • Trace export to Jaeger, metrics export to Prometheus
  • Canary analysis validating deployments with 3 queries:
    • Traffic detection ensuring minimum request rate (>= 0.05 req/s) to the canary to prevent idle canaries that get promoted but never had real traffic. You can use the hotrod_requests_total metric to verify this
    • Error rate thresholds (< 5%)
    • Latency thresholds for the 95th percentile (< 1000ms)

Perfect! Now we have three clear objectives to work toward. Let's tackle them one by one.

🔍 Step 2: Understand the Setup#

Before we start fixing things, let's understand what we're working with. All files are located in the following path:

adventures/01-echoes-lost-in-orbit/expert/manifests

Let's see what it contains:

  • appset.yaml: An Argo CD ApplicationSet that deploys the 3 applications listed below using the Git directory generator
  • hotrod/: The configuration for the HotROD app
    • analysis-template.yaml: An Argo Rollouts AnalysisTemplate that defines health checks during canary deployments
    • rollout.yaml: An Argo Rollouts Rollout resource that manages the canary deployment strategy
    • service.yaml: A Kubernetes Service that exposes the HotROD app
  • otel/: The configuration for the OpenTelemetry Collector
    • config.yaml: OpenTelemetry Collector configuration
    • daemonset.yaml: Kubernetes DaemonSet that runs the OpenTelemetry Collector
    • service.yaml: A Kubernetes Service that exposes the OpenTelemetry Collector
  • traffic-generator/: A simple app that sends traffic to the HotROD service
    • deployment.yaml: Kubernetes Deployment for the traffic generator

Now let's work through each objective.

🎯 Step 3: Clear Objectives#

Objective 1: Automated rollout progression to HotROD version 1.76.0 driven by observability signals#

This objective depends on fixing the other objectives first. Let's move on for now.

But before we jump into the other objectives, let's open Argo CD and see what's there.

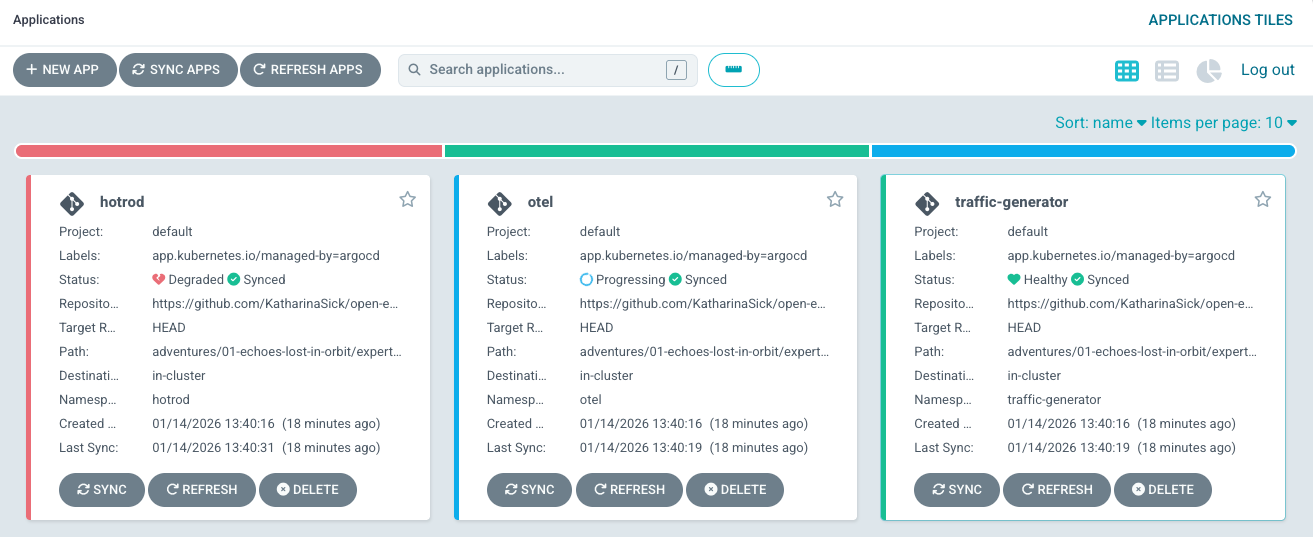

ArgoCD Applications

We can see 3 apps (matching those defined in the ApplicationSet):

  • hotrod: The HotROD app. This is broken because the last AnalysisRun failed. That's expected and therefore okay for now.
  • otel: The OpenTelemetry Collector. This app is progressing because the collector keeps crashing with the error invalid configuration: no receiver configuration specified in config. We need to fix the collector configuration to get this app working. Since this is part of Objective 2, let's move on for now.
  • traffic-generator: The traffic generator app. This app is healthy and running. Perfect!

Objective 2: OpenTelemetry Collector configured#

According to the objective, we need to configure 3 things:

  • OTLP receiver for traces from HotROD
  • Spanmetrics connector converting traces as metrics
  • Trace export to Jaeger, metrics export to Prometheus

Let's take a look at the otel/config.yaml file to find out what's already there and what's missing:

apiVersion: v1
kind: ConfigMap
metadata:
  name: collector-config
  labels:
    app: collector
data:
  collector-config.yaml: |
    receivers:

    connectors:
      spanmetrics:
        dimensions:
          - name: hotrod.namespace
          - name: hotrod.pod.name
          - name: hotrod.pod.hash

    exporters:
      debug:
        verbosity: detailed
      otlp:
        endpoint: jaeger-collector.jaeger.svc.cluster.local:4317
        tls:
          insecure: true

    extensions:
      health_check:
        endpoint: 0.0.0.0:13133

    service:
      extensions: [health_check]
      pipelines:
        traces:
          receivers: [otlp]
          exporters: [debug, otlp, spanmetrics]

An OpenTelemetry Collector config has several main sections. Here's what each of them does in a nutshell:

  • Receivers: Define how the collector receives data (e.g., OTLP, Jaeger, Zipkin)
  • Processors: Transform, filter, or enrich data before exporting (e.g., batch, memory limiter, attributes)
  • Connectors: Connect two pipelines, acting as both exporter and receiver (e.g., spanmetrics converts traces to metrics)
  • Exporters: Define where the collector sends the data (e.g., Jaeger, Prometheus, OTLP)
  • Service Pipelines: Define the flow of data through receivers, processors, connectors, and exporters

You can read more about this in the OpenTelemetry Collector documentation.

OTLP receiver for traces from HotROD

With that knowledge, the first thing we notice is that the receivers section is empty. That means the collector can't receive any data from HotROD. We need to add an OTLP receiver here.

The question is: what configuration does it need? Does HotROD send traces via OTLP over gRPC or HTTP?

Let's check the rollout.yaml file in the hotrod/ folder to find out. There we can see:

env:
  - name: OTEL_EXPORTER_OTLP_ENDPOINT
    value: "http://collector.otel.svc.cluster.local:4318"

Port 4318 is the default port for OTLP/HTTP according to the OpenTelemetry Collector docs.

Let's add an OTLP receiver configured for HTTP:

    receivers:
      otlp:
        protocols:
          http:
            endpoint: 0.0.0.0:4318

With that, the "OTLP receiver for traces from HotROD" is configured. Let's move on to the next one.

Spanmetrics connector converting traces as metrics

Looking at the connectors section, we can see that the spanmetrics connector is already defined. Spanmetrics traces are also already exported in the traces pipeline.

Let's create a metrics pipeline to export the generated metrics. We can do that by adding a new metrics pipeline in the service section. For now, let's only export to debug. With that, the spanmetrics connector will convert traces into metrics and export them.

Here's how the updated service section looks:

      pipelines:
        traces:
          ... # existing traces pipeline
        metrics:
          receivers: [ spanmetrics ]
          exporters: [ debug ]

Trace export to Jaeger, metrics export to Prometheus

Now that we have all the metrics and traces we need, we just need to export them to the right endpoints.

Let's start with exporting traces to Jaeger. Checking the config, traces are already exported to an OTLP exporter which points to Jaeger. Perfect! That means trace export to Jaeger is already configured. Let's export metrics to Prometheus.

For that, we need to add a Prometheus exporter in the exporters section and add it to the metrics pipeline. Let's check the OpenTelemetry Collector docs on how to configure the Prometheus exporter.

According to the docs, we can add the following configuration:

    exporters:
      ... # existing exporters
      prometheus:
        endpoint: "1.2.3.4:1234"

But what port should we use?

Let's check the daemonset.yaml in the otel/ folder. There we can see that the collector exposes port 8889 for Prometheus metrics (look for the port named prometheus). The pod annotations also confirm this with prometheus.io/port: "8889". This means Prometheus is already configured to scrape metrics from this port.

So the correct configuration is:

    exporters:
      ... # existing exporters
      prometheus:
        endpoint: "0.0.0.0:8889"

We use 0.0.0.0 to listen on all interfaces so Prometheus can scrape the metrics from outside the container.

Awesome! Now we just need to add the Prometheus exporter to the metrics pipeline:

      pipelines:
        ... # existing pipelines
        metrics:
          receivers: [ spanmetrics ]
          exporters: [ debug, prometheus ]

Let's push these changes, let Argo CD pick them up, restart the collector, and see if we can get the OpenTelemetry Collector working.

argocd app get otel --refresh
kubectl rollout restart daemonset/collector -n otel

Nice! After pushing and letting Argo CD sync the changes, the OpenTelemetry Collector is now healthy. We can also see metrics arriving in Prometheus and traces in Jaeger. Objective 2 is complete!

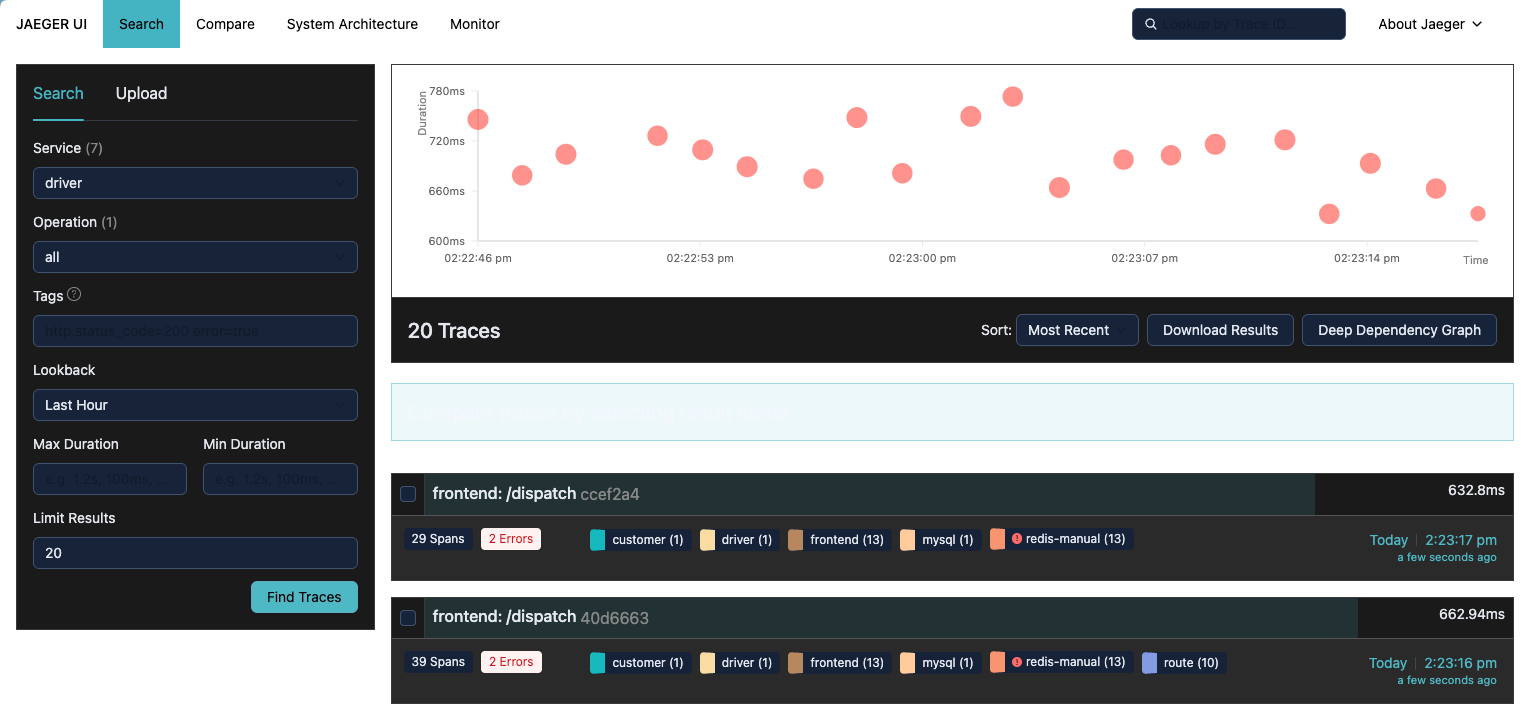

Jaeger:

Jaeger Traces

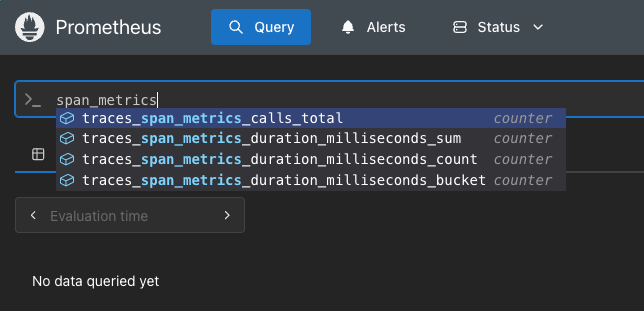

Prometheus:

Prometheus Metrics

Here's the full OpenTelemetry Collector config:

apiVersion: v1
kind: ConfigMap
metadata:
  name: collector-config
  labels:
    app: collector
data:
  collector-config.yaml: |
    receivers:
      otlp:
        protocols:
          http:
            endpoint: 0.0.0.0:4318

    connectors:
      spanmetrics:
        dimensions:
          - name: hotrod.namespace
          - name: hotrod.pod.name
          - name: hotrod.pod.hash

    exporters:
      debug:
        verbosity: detailed
      otlp:
        endpoint: jaeger-collector.jaeger.svc.cluster.local:4317
        tls:
          insecure: true
      prometheus:
        endpoint: "0.0.0.0:8889"

    extensions:
      health_check:
        endpoint: 0.0.0.0:13133

    service:
      extensions: [health_check]
      pipelines:
        traces:
          receivers: [otlp]
          exporters: [debug, otlp, spanmetrics]
        metrics:
          receivers: [ spanmetrics ]
          exporters: [ debug, prometheus ]

Key Takeaways#

  • The OpenTelemetry Collector is highly configurable with receivers, processors/connectors, exporters, and service pipelines.
  • The OTLP receiver allows the collector to receive traces from applications instrumented with OpenTelemetry.
  • The Spanmetrics connector can convert traces into metrics, enabling advanced analysis and monitoring.
  • Pipelines define the flow of data through the collector, allowing for flexible data processing and exporting.

Further Reading#

Objective 3: Canary analysis validating deployments#

This objective tells us that we need to configure the AnalysisTemplate with 3 queries:

  • Traffic detection ensuring minimum request rate (>= 0.05 req/s) to the canary to prevent "idle canaries" that get promoted but never had real traffic. You can use the hotrod_requests_total metric to verify this.
  • Error rate thresholds (< 5%)
  • Latency thresholds for the 95th percentile (< 1000ms)

Let's check the AnalysisTemplate in hotrod/analysis-template.yaml to see what's already there:

apiVersion: argoproj.io/v1alpha1
kind: AnalysisTemplate
metadata:
  name: hotrod-analysis
spec:
  args:
    - name: namespace
    - name: canary-hash
  metrics:
    - name: error-rate-lt-5-percent
      initialDelay: 60s
      interval: 10s
      count: 3
      successCondition: result[0] < 0.05
      failureLimit: 2
      inconclusiveLimit: 3
      consecutiveErrorLimit: 2
      provider:
        prometheus:
          address: http://prometheus-server.prometheus.svc.cluster.local
          query: |
            # Error rate: ratio of failed requests to total requests
            sum(rate(hotrod_requests_total{
              namespace="{{args.namespace}}",
              rollouts_pod_template_hash="{{args.canary-hash}}",
              error="true"
            }[2m]))
            /
            sum(rate(hotrod_requests_total{
              namespace="{{args.namespace}}",
              rollouts_pod_template_hash="{{args.canary-hash}}"
            }[2m]))

    - name: latency-p95-lt-1s
      initialDelay: 90s
      interval: 10s
      count: 3
      successCondition: result[0] < 1000
      failureLimit: 2
      inconclusiveLimit: 3
      consecutiveErrorLimit: 2
      provider:
        prometheus:
          address: http://prometheus-server.prometheus.svc.cluster.local
          query: |
            # P95 latency: should be under 1 second
            histogram_quantile(0.95,
              sum by (le) (rate(traces_span_metrics_duration_milliseconds_bucket{
                hotrod_namespace="{{args.namespace}}",
                hotrod_pod_hash="{{args.canary-hash}}"
              }[2m]))
            )

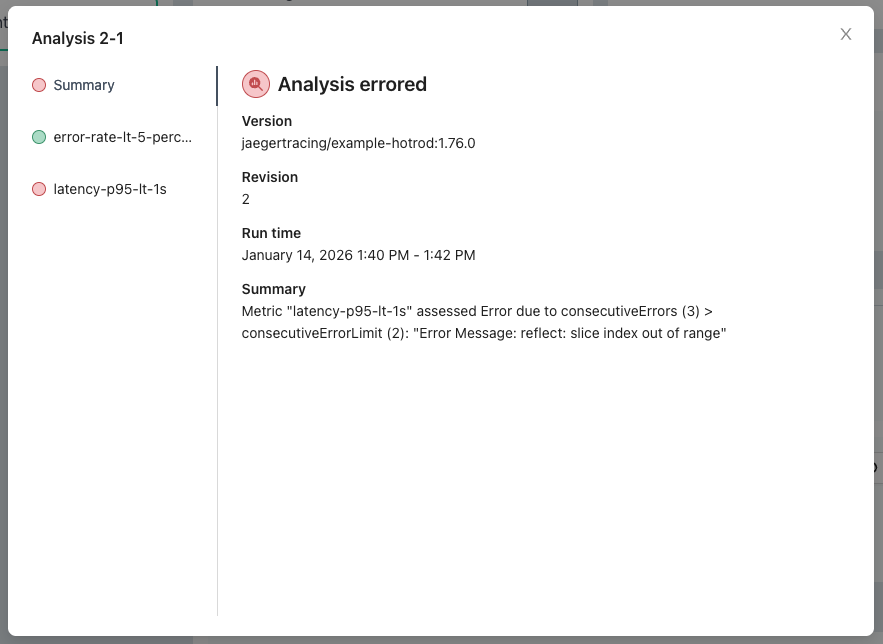

Let's also open the Argo Rollouts dashboard and see the status of the last analysis run. We can see that the first check error-rate-lt-5-percent succeeded, but the second check latency-p95-lt-1s failed with index out of range.

Analysis Run Failed

Let's take one step back and check and fix the queries one by one.

Traffic detection (>= 0.05 req/s)

The existing queries check for error rate and latency, but there's no query for traffic detection. This metric ensures the canary receives real traffic before promotion—without it, a canary could be promoted even if it never handled any requests.

Let's add a new metric. The configuration is explained in the comments:

  metrics:
    # This metric ensures the canary is receiving real traffic before promotion.
    # Without this check, a canary could be promoted even if it never handled
    # any requests (e.g., due to routing issues or no traffic at all).
    - name: traffic-detection
      initialDelay: 90s # Wait 90 seconds before the first check to allow traffic to flow
      interval: 10s # Check every 10 seconds
      count: 5 # Run 5 measurements total
      successCondition: result[0] >= 0.05 # Success if there are at least 0.05 req/s (ensures real traffic)
      failureLimit: 3 # Allow up to 3 failures before marking the analysis as failed
      inconclusiveLimit: 5 # Allow up to 5 inconclusive results (e.g., no data yet)
      consecutiveErrorLimit: 3 # Allow up to 3 consecutive errors (e.g., Prometheus unavailable)
      provider:
        prometheus:
          address: http://prometheus-server.prometheus.svc.cluster.local
          # Calculate the per-second request rate over the last 2 minutes
          # for the canary pods only (filtered by namespace and pod hash)
          query: |
            sum(rate(hotrod_requests_total{
              namespace="{{args.namespace}}",
              rollouts_pod_template_hash="{{args.canary-hash}}"
            }[2m]))

With that, we're checking if there is traffic and avoiding idle canaries. Let's move on to the next one.

Error rate thresholds (< 5%)

A metric for this already exists:

    - name: error-rate-lt-5-percent
      initialDelay: 60s
      interval: 10s
      count: 3
      successCondition: result[0] < 0.05
      failureLimit: 2
      inconclusiveLimit: 3
      consecutiveErrorLimit: 2
      provider:
        prometheus:
          address: http://prometheus-server.prometheus.svc.cluster.local
          query: |
            # Error rate: ratio of failed requests to total requests
            sum(rate(hotrod_requests_total{
              namespace="{{args.namespace}}",
              rollouts_pod_template_hash="{{args.canary-hash}}",
              error="true"
            }[2m]))
            /
            sum(rate(hotrod_requests_total{
              namespace="{{args.namespace}}",
              rollouts_pod_template_hash="{{args.canary-hash}}"
            }[2m]))

This metric succeeded in the last analysis run. After checking it again to be sure, it looks good. No changes needed here.

Latency thresholds for the 95th percentile (< 1000ms)

A metric for this already exists:

    - name: latency-p95-lt-1s
      initialDelay: 90s
      interval: 10s
      count: 3
      successCondition: result[0] < 1000
      failureLimit: 2
      inconclusiveLimit: 3
      consecutiveErrorLimit: 2
      provider:
        prometheus:
          address: http://prometheus-server.prometheus.svc.cluster.local
          query: |
            # P95 latency: should be under 1 second
            histogram_quantile(0.95,
              sum by (le) (rate(traces_span_metrics_duration_milliseconds_bucket{
                hotrod_namespace="{{args.namespace}}",
                hotrod_pod_hash="{{args.canary-hash}}"
              }[2m]))
            )

This one failed in the last analysis run with this error:

Metric "latency-p95-lt-1s" assessed Error due to consecutiveErrors (3) > consecutiveErrorLimit (2): "Error Message: reflect: slice index out of range"

But when looking at it, everything looks fine. Thinking about this again, this failed before we had the OpenTelemetry Collector working. That means no metrics about traces were arriving in Prometheus at all.

Now that we have the OpenTelemetry Collector working, let's push our changes, refresh the Argo CD app, and retry the rollout to see if this works now.

argocd app get hotrod --refresh
kubectl argo rollouts retry rollout hotrod -n hotrod

Nice! The analysis run succeeded and we can be sure that we're actually checking an app with real traffic now.

Analysis Run Succeeded

Here's the full AnalysisTemplate with all 3 metrics:

apiVersion: argoproj.io/v1alpha1
kind: AnalysisTemplate
metadata:
  name: hotrod-analysis
spec:
  args:
    - name: namespace
    - name: canary-hash
  metrics:
    - name: traffic-detection
      initialDelay: 90s # Wait 90 seconds before the first check to allow traffic to flow
      interval: 10s # Check every 10 seconds
      count: 5 # Run 5 measurements total
      successCondition: result[0] >= 0.05 # Success if there are at least 0.05 req/s (ensures real traffic)
      failureLimit: 3 # Allow up to 3 failures before marking the analysis as failed
      inconclusiveLimit: 5 # Allow up to 5 inconclusive results (e.g., no data yet)
      consecutiveErrorLimit: 3 # Allow up to 3 consecutive errors (e.g., Prometheus unavailable)
      provider:
        prometheus:
          address: http://prometheus-server.prometheus.svc.cluster.local
          # Calculate the per-second request rate over the last 2 minutes
          # for the canary pods only (filtered by namespace and pod hash)
          query: |
            sum(rate(hotrod_requests_total{
              namespace="{{args.namespace}}",
              rollouts_pod_template_hash="{{args.canary-hash}}"
            }[2m]))
    - name: error-rate-lt-5-percent
      initialDelay: 60s
      interval: 10s
      count: 3
      successCondition: result[0] < 0.05
      failureLimit: 2
      inconclusiveLimit: 3
      consecutiveErrorLimit: 2
      provider:
        prometheus:
          address: http://prometheus-server.prometheus.svc.cluster.local
          query: |
            # Error rate: ratio of failed requests to total requests
            sum(rate(hotrod_requests_total{
              namespace="{{args.namespace}}",
              rollouts_pod_template_hash="{{args.canary-hash}}",
              error="true"
            }[2m]))
            /
            sum(rate(hotrod_requests_total{
              namespace="{{args.namespace}}",
              rollouts_pod_template_hash="{{args.canary-hash}}"
            }[2m]))

    - name: latency-p95-lt-1s
      initialDelay: 90s
      interval: 10s
      count: 3
      successCondition: result[0] < 1000
      failureLimit: 2
      inconclusiveLimit: 3
      consecutiveErrorLimit: 2
      provider:
        prometheus:
          address: http://prometheus-server.prometheus.svc.cluster.local
          query: |
            # P95 latency: should be under 1 second
            histogram_quantile(0.95,
              sum by (le) (rate(traces_span_metrics_duration_milliseconds_bucket{
                hotrod_namespace="{{args.namespace}}",
                hotrod_pod_hash="{{args.canary-hash}}"
              }[2m]))
            )

Key Takeaways#

  • If there's no traffic, canary deployments can be promoted without ever being tested under real conditions.
  • Argo Rollouts AnalysisTemplates can use traces for verification when converting them to metrics with the Spanmetrics connector.

Further Reading#

✅ Complete Solution#

Here's what your corrected files should look like with all fixes applied:

OpenTelemetry Collector Config:

apiVersion: v1
kind: ConfigMap
metadata:
  name: collector-config
  labels:
    app: collector
data:
  collector-config.yaml: |
    receivers:
      otlp:
        protocols:
          http:
            endpoint: 0.0.0.0:4318

    connectors:
      spanmetrics:
        dimensions:
          - name: hotrod.namespace
          - name: hotrod.pod.name
          - name: hotrod.pod.hash

    exporters:
      debug:
        verbosity: detailed
      otlp:
        endpoint: jaeger-collector.jaeger.svc.cluster.local:4317
        tls:
          insecure: true
      prometheus:
        endpoint: "0.0.0.0:8889"

    extensions:
      health_check:
        endpoint: 0.0.0.0:13133

    service:
      extensions: [health_check]
      pipelines:
        traces:
          receivers: [otlp]
          exporters: [debug, otlp, spanmetrics]
        metrics:
          receivers: [ spanmetrics ]
          exporters: [ debug, prometheus ]

Analysis Template:

apiVersion: argoproj.io/v1alpha1
kind: AnalysisTemplate
metadata:
  name: hotrod-analysis
spec:
  args:
    - name: namespace
    - name: canary-hash
  metrics:
    - name: traffic-detection
      initialDelay: 90s # Wait 90 seconds before the first check to allow traffic to flow
      interval: 10s # Check every 10 seconds
      count: 5 # Run 5 measurements total
      successCondition: result[0] >= 0.05 # Success if there are at least 0.05 req/s (ensures real traffic)
      failureLimit: 3 # Allow up to 3 failures before marking the analysis as failed
      inconclusiveLimit: 5 # Allow up to 5 inconclusive results (e.g., no data yet)
      consecutiveErrorLimit: 3 # Allow up to 3 consecutive errors (e.g., Prometheus unavailable)
      provider:
        prometheus:
          address: http://prometheus-server.prometheus.svc.cluster.local
          # Calculate the per-second request rate over the last 2 minutes
          # for the canary pods only (filtered by namespace and pod hash)
          query: |
            sum(rate(hotrod_requests_total{
              namespace="{{args.namespace}}",
              rollouts_pod_template_hash="{{args.canary-hash}}"
            }[2m]))
    - name: error-rate-lt-5-percent
      initialDelay: 60s
      interval: 10s
      count: 3
      successCondition: result[0] < 0.05
      failureLimit: 2
      inconclusiveLimit: 3
      consecutiveErrorLimit: 2
      provider:
        prometheus:
          address: http://prometheus-server.prometheus.svc.cluster.local
          query: |
            # Error rate: ratio of failed requests to total requests
            sum(rate(hotrod_requests_total{
              namespace="{{args.namespace}}",
              rollouts_pod_template_hash="{{args.canary-hash}}",
              error="true"
            }[2m]))
            /
            sum(rate(hotrod_requests_total{
              namespace="{{args.namespace}}",
              rollouts_pod_template_hash="{{args.canary-hash}}"
            }[2m]))

    - name: latency-p95-lt-1s
      initialDelay: 90s
      interval: 10s
      count: 3
      successCondition: result[0] < 1000
      failureLimit: 2
      inconclusiveLimit: 3
      consecutiveErrorLimit: 2
      provider:
        prometheus:
          address: http://prometheus-server.prometheus.svc.cluster.local
          query: |
            # P95 latency: should be under 1 second
            histogram_quantile(0.95,
              sum by (le) (rate(traces_span_metrics_duration_milliseconds_bucket{
                hotrod_namespace="{{args.namespace}}",
                hotrod_pod_hash="{{args.canary-hash}}"
              }[2m]))
            )

With these changes, your rollouts will now progress automatically through canary stages based on health metrics. This also means Objective 1 is now achieved—the rollout will automatically progress to HotROD version 1.76.0 driven by the observability signals we configured. All objectives of the challenge are met. Great job! 🎉
